Description

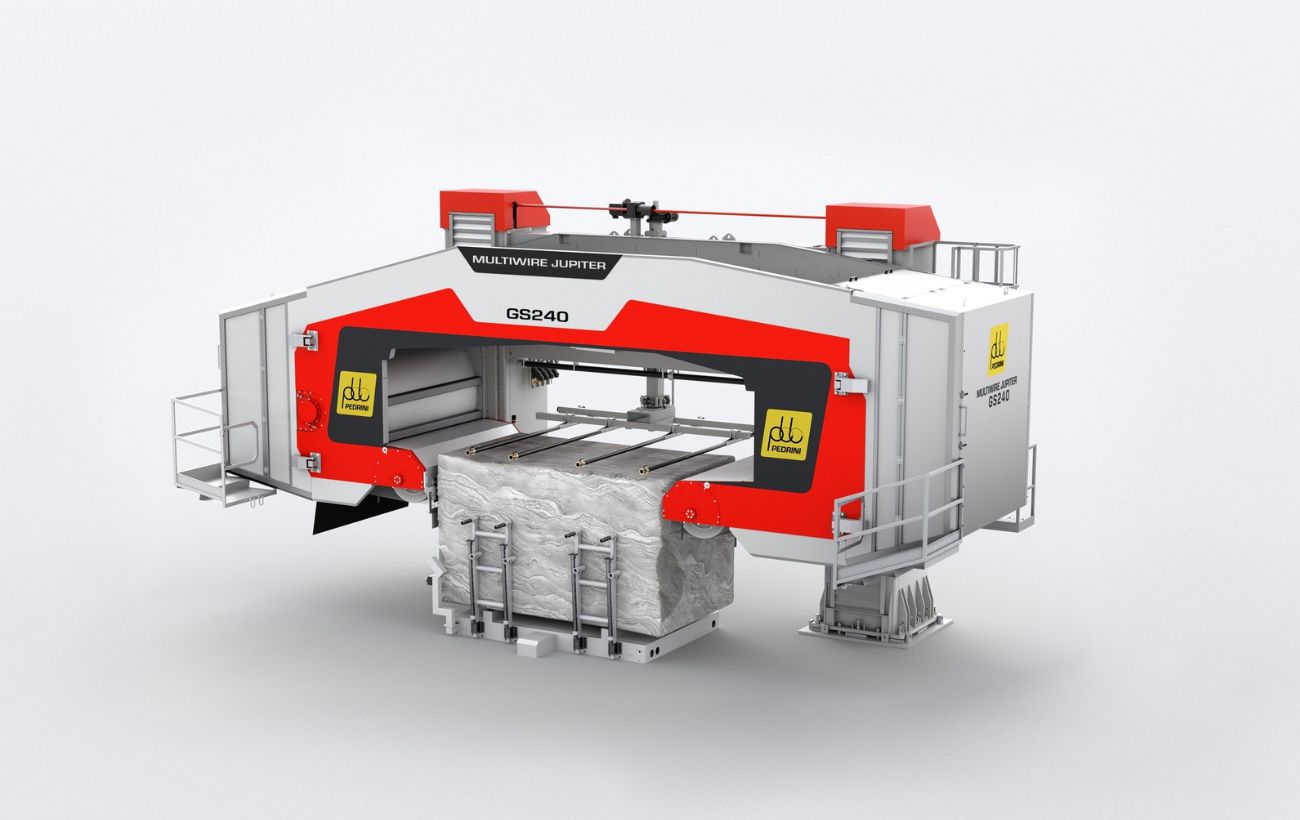

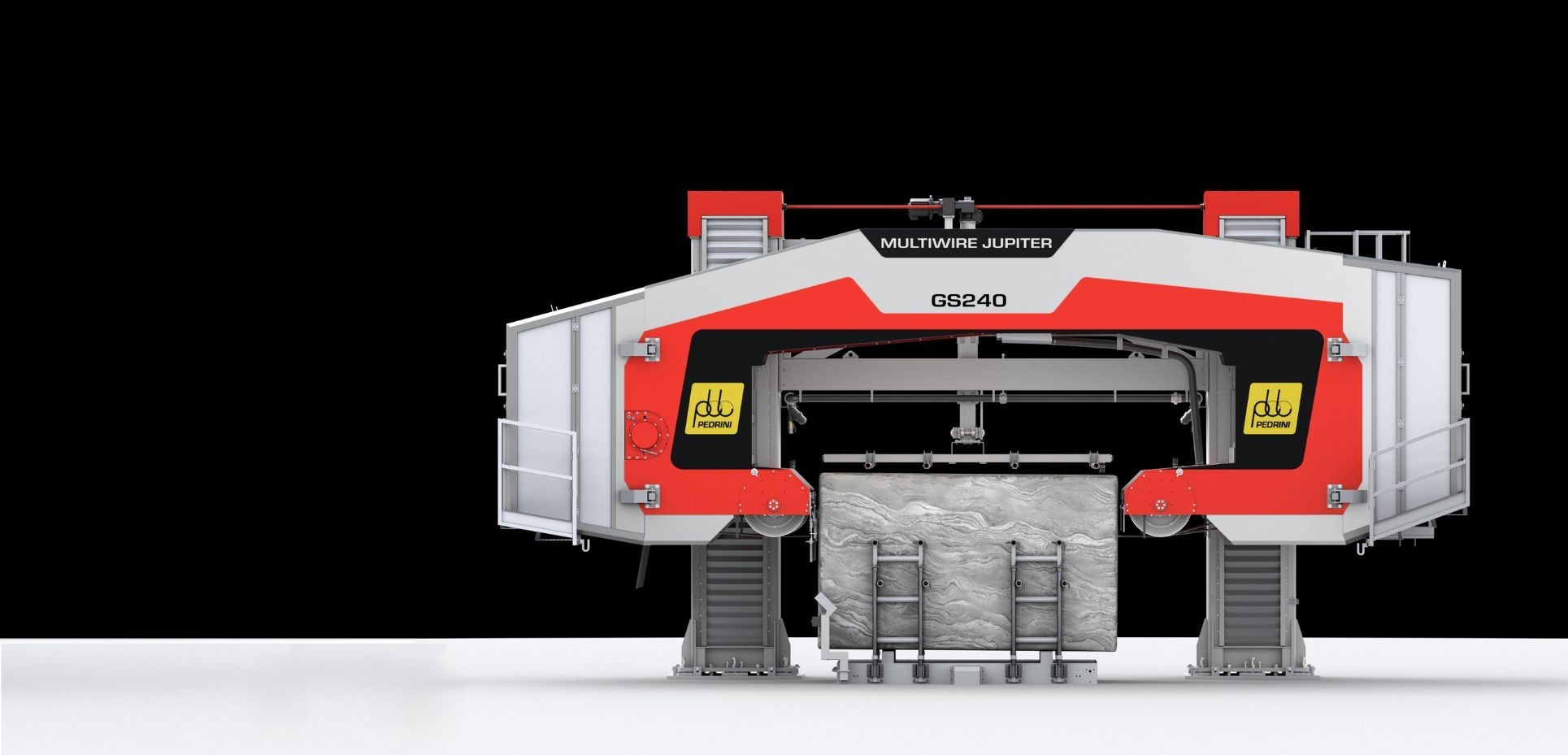

MULTIWIRE JUPITER GS240 represents the fourth generation of Pedrini Multiwire machines for the natural stone cutting industry.

Thanks to its outstanding versatility, MULTIWIRE JUPITER GS240 processes quartzites, marbles, and granites with precision, delivering excellent results on every type of material.

It is available in different models, distinguished by the maximum number of wires and by the diameter of the diamond wires (4.3 mm – 5.3 mm – 6.3 mm – 7.3 mm).

The use of 4.3 mm wire makes it possible to optimize block yield, reaching up to 39.2 m²/m³ with 2 cm thick slabs.

One of the distinctive components of the MULTIWIRE JUPITER GS240 is the large flywheel with a diameter of 2.3 meters. The wide contact arc with the wires ensures smooth and precise traction, which is essential during block cutting operations.

MULTIWIRE JUPITER GS240 is the result of Pedrini’s technological know-how. Through extensive research, development, and testing, Pedrini has created an innovative and highly reliable machine. The adoption of the best technical solutions has led to significant advantages, including lower energy consumption and reduced processing waste.

Key features

Solid

The structure of the machine has been further improved by increasing its rigidity and optimizing the geometry to ensure superior performance.

Versatile

Available in the versions from 24 to 80 wires, thus meeting any production requirement

Patented

It has exclusive and advanced patents that make it unique in its kind

Precise

It grants an accurate slab cut

Flexible

It allows the cutting of the same block into slabs of different thicknesses

Reliable

It offers technical solutions designed and tested using state-of-the-art methods and materials, without using delicate or risky mechanical elements

Practical

It simplifies the operator activities when managing both the diamond wire and the machine thanks to a "user-friendly" interface

Efficient

It is designed and manufactured to optimize the yield of the block and of the diamond wire

Complete

It easily integrates with plants for slab processing

Eco-friendly

By using, for example, a 4.3 mm wire, it is possible to optimize cutting performance and improve efficiency, while at the same time reducing environmental impact

Configurations

Multiwire Jupiter is manufactured in different versions essentially characterized by a combination of various parameters.

Slab thickness

2 - 3
The slab thickness is chosen according to the required final product

Wire diameter
4.3 - 5.3 - 6.3 - 7.3

The diamond bead diameter is chosen according to the mix of materials to be processed and specific operational requirements

Number of wires
24 - 32 - 40 - 48 - 56 - 64 - 72 - 80

The number of wires is chosen according to the required production capacity and the type of material

Pitch

8,5 - 8,8 - 9,0 - 9,3 -9,6

The pitch of the wire guide grooves is chosen according to the diameter of the diamond bead, the block yield optimization, and the type of material.
