Machines for cutting granite: all the solutions

Granite is one of the hardest and most challenging materials to work with. To ensure precise, fast cutting with minimal waste, it is essential to rely on cutting machines specifically designed for this type of natural stone. Pedrini offers advanced solutions for granite cutting, helping you stay competitive in the industry.

The challenges of granite cutting

Granite is an extremely hard, compact, and abrasive natural stone. These characteristics make its processing more complex than that of other types of stone materials. The main difficulties in cutting granite include:

Hardness and abrasiveness: they require high-performance diamond tools.
Need for extreme precision: every cut must be stable to avoid errors and waste.
High mechanical stress: the machines must withstand intense and prolonged production cycles.
Waste minimization: inefficient cutting leads to the loss of valuable material.

Only a system specifically designed for granite cutting can ensure optimal performance, reduced costs, and consistent productivity.

Pedrini machines for granite cutting

Pedrini is internationally recognized for its expertise in processing hard materials, especially granite. We offer a complete range of machines for granite cutting, designed to meet different production needs.

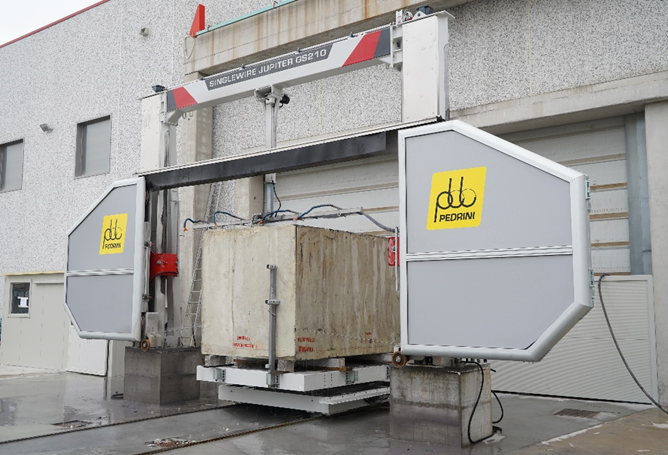

Singlewire Jupiter GS210

The Jupiter GS210 is a single-wire machine ideal for squaring granite blocks with maximum precision.

Technical Details:

Key features:

Compact and sturdy structure
Automatic wire-tensioning system
Precise movement for perfect cuts
Available in both fixed and mobile versions to create a “double-wire” configuration, which halves block-squaring times by performing two cuts simultaneously
Increases cutting capacity for heights over 2000 mm
Facilitates operator access for wire replacement and cleaning thanks to an easily opened protective casing.

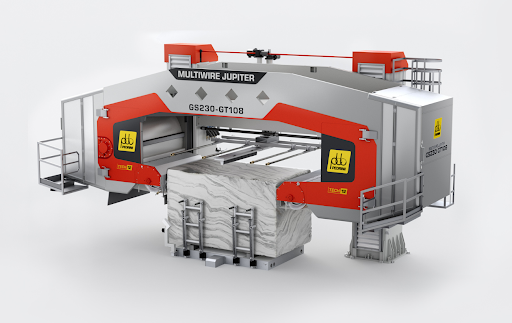

Multiwire Jupiter GS230 TECH12

The GS230 TECH12 is a multiwire machine designed for the industrial production of 12 mm slabs, ideal for those seeking maximum production speed.

Technical Details:

Key advantages:

High productivity
Reduced cutting times
Optimized use of processed material
Slab thickness: 1.2 – 2 – 3 mm (the base slab thickness is selected according to the desired product)
Wire diameter: 5.3 mm (the diameter of the diamond bead is chosen based on the mix of materials being cut)
Number of wires: 48 – 60 – 72 – 108 (the number of wires is selected according to the required production capacity)

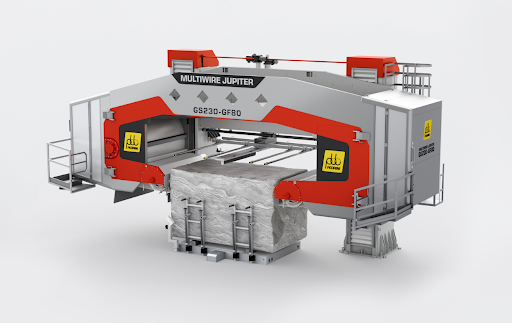

Multiwire Jupiter GS230-GF

The GS230-GF version is one of the most advanced solutions for block cutting.

Technical Details:

Product highlights:

Operational flexibility
Energy efficiency
Excellent cutting quality, even on very hard materials
Slab thickness: 2 – 3 mm (the base slab thickness is selected according to the desired product)
Wire diameter: 7.3 – 6.3 – 5.3 mm (the diameter of the diamond bead is chosen based on the mix of materials being cut)
Number of wires: 16 – 24 – 32 – 40 – 48 – 56 – 64 – 72 – 80 (the number of wires is selected according to the required production capacity).

Granite cutting machine M585

The M585 disc block cutter is designed for vertical and horizontal cuts on granite blocks.

Technical Details:

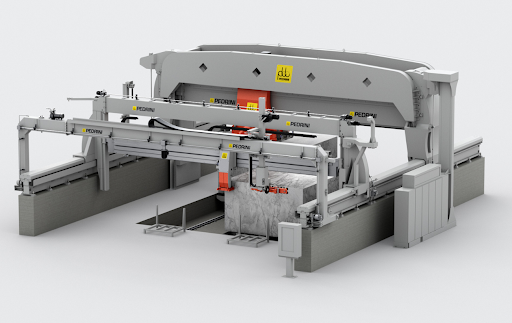

Arco di Trionfo is available in two versions.

M594:

Composed of three independent units: vertical discs, horizontal disc, and automatic unloader with suction cups.
Blocks are moved into the cutting area by a single large block-carrying trolley.

M596:

The three operating units have double width and move synchronously on the same rails.
Operates with two independent trolleys that alternate between the vertical and horizontal cutting positions, ensuring 24-hour production cycles.

Looking for the ideal machine for your plant?

Contact us for a free consultation and discover which Pedrini machine best matches your production volume, granite type, and efficiency goals.

The advantages of multiwire solutions

Multiwire granite cutting machines represent the most efficient frontier in granite processing.

Here are the main functional benefits:

Simultaneous parallel cuts: reduced cycle time and increased productivity
Minimal material waste: fewer scraps and higher yield per block
Superior cutting quality: even on high-hardness granites and quartzites
Energy savings: lower consumption per cubic meter processed

This type of technology is especially advantageous for manufacturers with medium-to-high production volumes and a strong need to optimize processing costs.

Why choose Pedrini for granite cutting

Choosing Pedrini means gaining a real competitive advantage in granite processing. It's not just about purchasing a machine, but investing in a complete and reliable solution designed to improve production efficiency, reduce costs, and ensure continuous operation.

The advantages of our machinery:

Maximum field efficiency, thanks to technical design specifically tailored to processing hard stones such as granite.
Reduced downtime: robust structures and industrial-grade engineering ensure stability even during intensive production cycles.
Custom-designed systems that perfectly adapt to your materials, production volumes, and business objectives.
Results verified in advance, with cutting tests on real samples before purchase.
Continuous technical support to ensure maximum operability and constant long-term updates.
